Wheels

Our wheels make the world go round. We have the wheel for any one of your applications whether it be in the food industry, auto and aero industry, even high temp applications.

Non-Marking Rubber

Sizes: 3", 3-1/2", 4", 5", 6", 8"
Capacity: 300 - 700 lbs
Series: 20, 40, 50
Durometer: Shore A 75(+/-5)

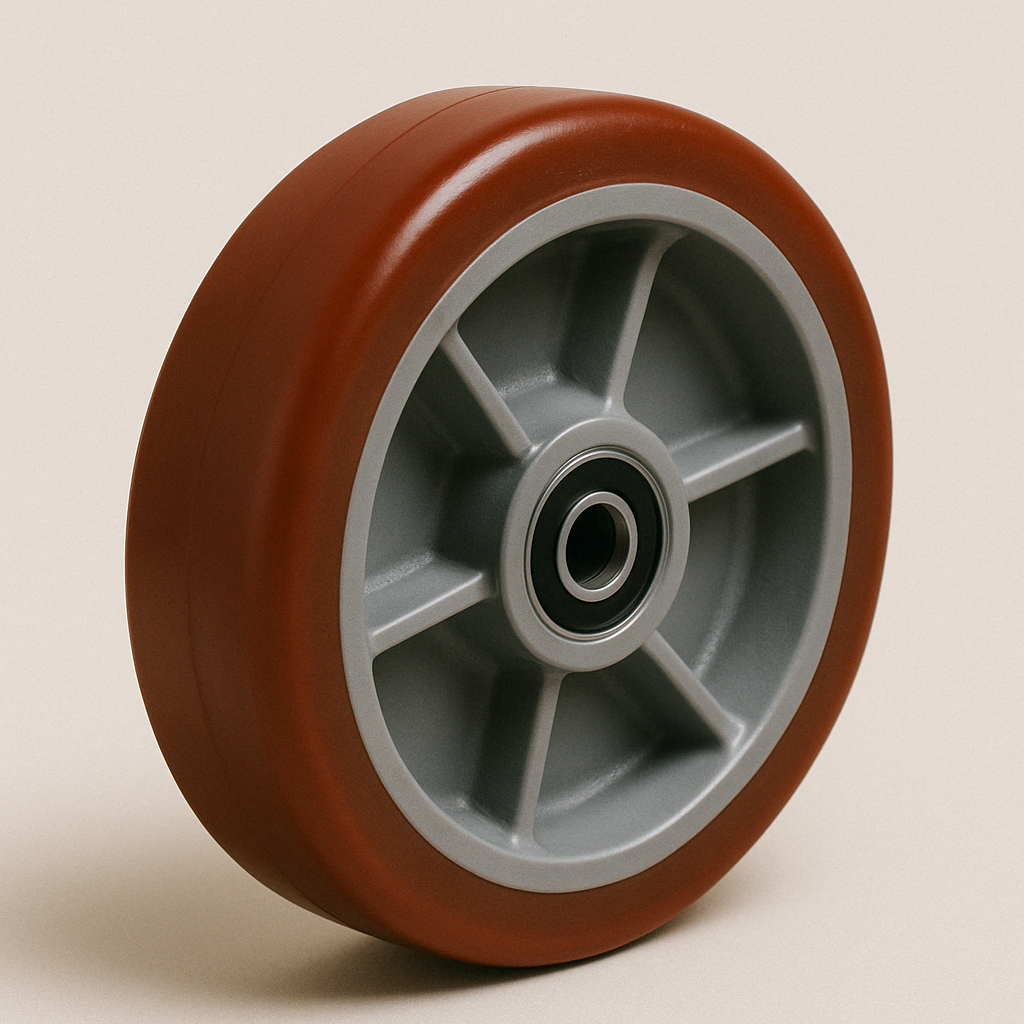

Poly on Poly

Sizes: 3", 3-1/2", 4", 5", 6", 8"
Capacity: 300 - 1000 lbs
Series: 20, 40, 50
Durometer: Shore D 60(+/-5)

Phenolic

Sizes: 3", 3-1/2", 4", 5", 6", 8",10", 12"
Capacity: 300 - 3500 lbs
Series: 20, 40, 50, 75
Durometer: Shore D 90(+/-5)

Polyolefin

Sizes: 3", 3-1/2", 4", 5"
Capacity: 300 - 375 lbs
Series: 20
Durometer: Shore D 65(+/-5)

CW Ultra Wheel

Sizes: 5", 6", 8"
Capacity: 1000 - 1500 lbs
Series: 40, 50
Durometer: Shore A 80(+/-5)

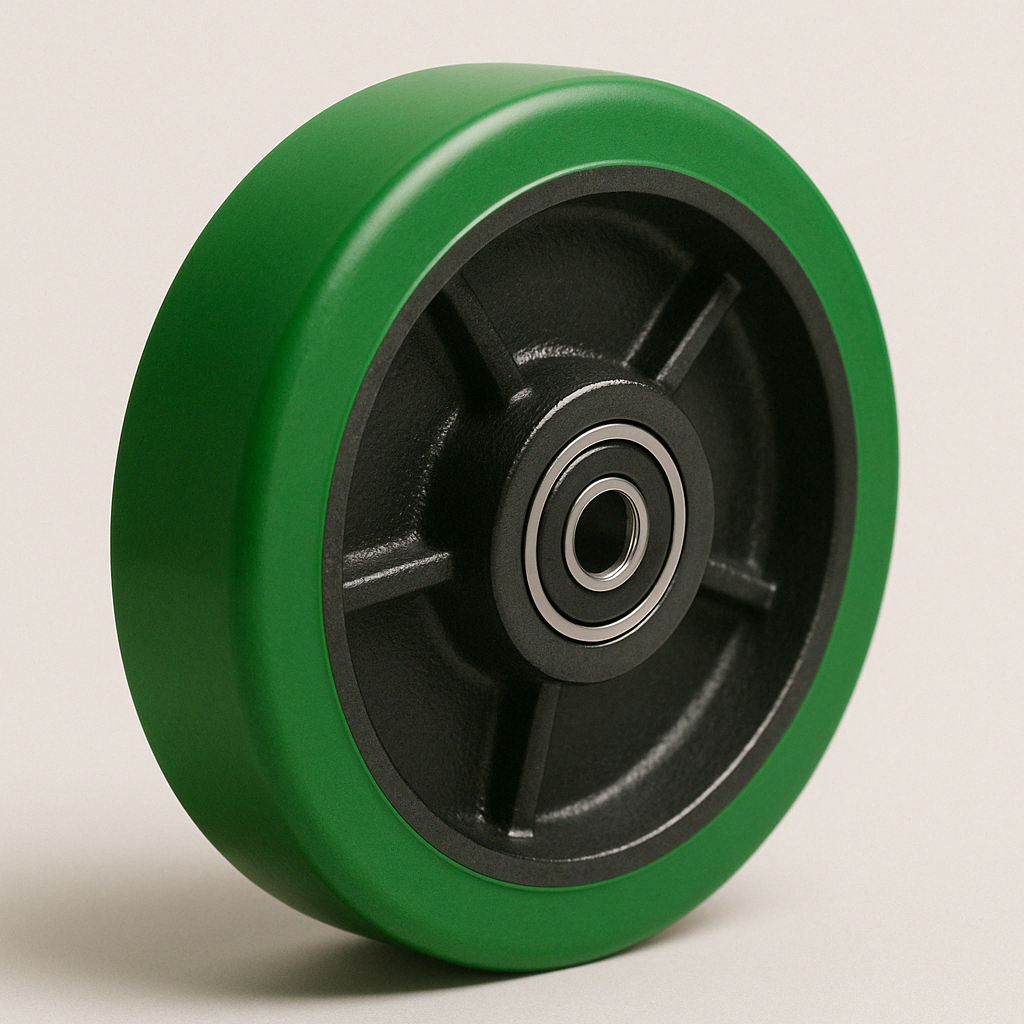

Poly on Iron

Sizes: 4", 5", 6", 8", 10", 12"
Capacity: 800 - 3500 lbs
Series: 40, 50, 75
Durometer: Shore A 95(+/-5)

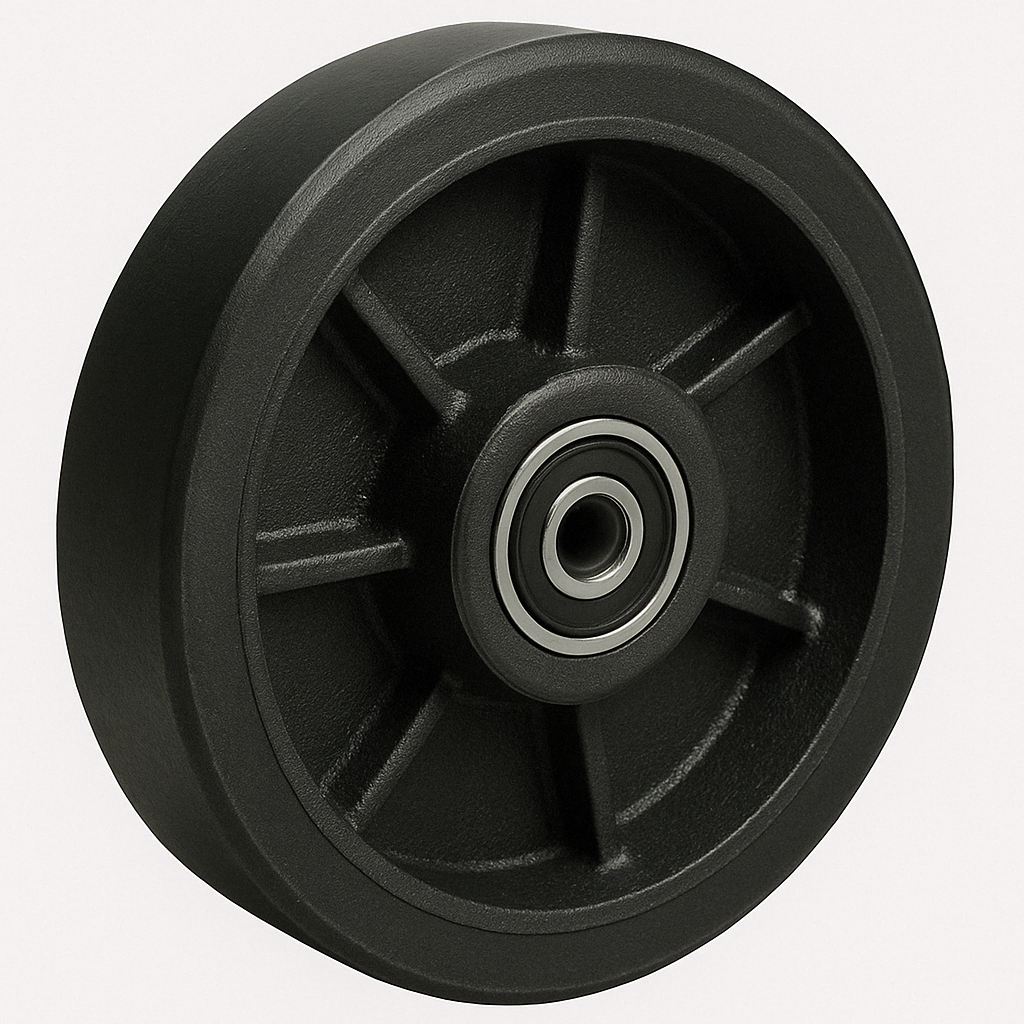

Nylon Glass

Sizes: 4", 5", 6", 8"
Capacity: 800 - 1400 lbs
Series: 40, 50
Durometer: Shore D 85(+/-5)

Poly on Iron HD

Sizes: 6", 8", 10", 12"
Capacity: 2200 - 3500 lbs
Series: 75
Durometer: Shore A 95(+/-5)

Ductile Iron

Sizes: 6", 8", 10", 12"
Capacity: 6000 - 10,000 lbs
Series: 75
Durometer: Shore A 85(+/-5)
